16-Channel Extracellular Amplifier with Headstage Model 3600




A-M Systems is proud to introduce our new Model 3600 16-Channel Extracellular AC Amplifier with Headstage.

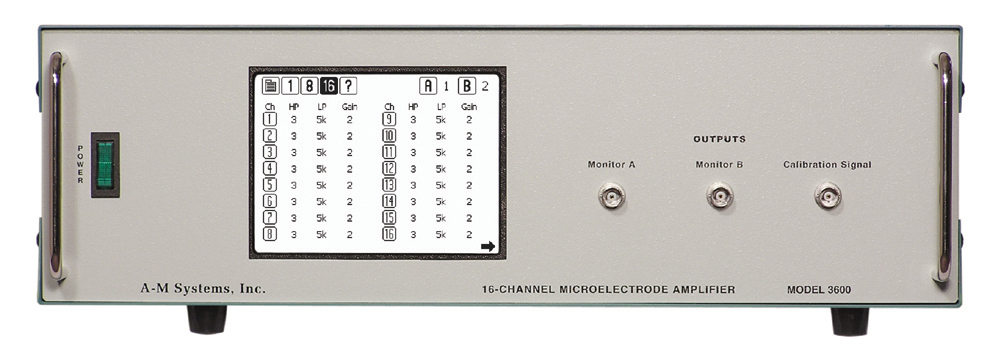

In response to many inquiries for a larger version of our popular Model 1800 2-Channel Microelectrode AC Amplifier, we have developed this unit. The Model 3600 has 16 independent channels, a front panel touch screen, computer control capabilities and a built-in calibrator. In addition, users can quickly monitor on an external oscilloscope the activity on any two channels.
Multiple instruments will be controllable by a single computer program, enabling the setting of critical parameters on as many channels as you need.
Compared to the Model 1800, the Model 3600 has:
  • More gain settings and increased gain range
  • More high pass filter settings and increased high pass range
  • More low pass filter settings and increased low pass range
  • TTL Control of instrument mode
  • Channel Monitors
  • Built-In Calibration signal
  • Common Reference Bus
  • Blanking
  • PC control capability
  • MATLAB® and LabVIEW SDK and drivers available
  • Less rack space utilized for 16 channels
Two different headstages are available. One is a microminiature headstage that can make simultaneous pseudo-differential recordings from 16 channels, and is smaller than a dime! The other can stimulate and record to any combination of the 16 channels.
Most of the on-board control screens, and the PC Compatible software, are very similar in design to those utilized on our Model 3500 16-Channel Amplifier (without headstage). Click on these links for additional information on the on-board screens and the PC program.

Specifications

Noise
  • Voltage, fB = 10 Hz-10 kHz, typical: 2.0 µV, rms
Offset Voltage
  • Average Drift , typical: ±4.0 µV/°C
  • Average Drift , maximum: ±30.0 µV/°C
Bias Current
  • Initial Bias Current, maximum: ±1 pA
Offset Current
Input Offset Current, maximum: ±1 pA

Input Impedance
  • 1012 Ω || 4 pF
Inter-channel Crosstalk
  • -70 dB at 1 kHz
Input Voltage Size
  • VDC: 1 Volt
  • VAC: Gain/10 Volts
  • Commmon Mode Rejection (CMR): 100 dB
Rated Output
  • Voltage Output: ±11 V
  • Output Resistance: >100 Ωs
Low Cut-Off Filter
  • Cut-Off Frequencies: 0.3, 1.0, 3.0, 10.0, 30.0, 100, 300, 500 Hz
  • Cut-Off Rate: 40 dB/decade
High Cut-Off Filter
  • Cut-Off Frequencies: 0.1, 0.3, 0.5, 1.0, 3.0, 5.0, 10.0, 20.0 kHz
  • Cut-Off Rate: 40 dB/decade
Notch Filter
  • Center Frequency: 50 Hz or 60 Hz
  • Rejection: >35 dB
Gain
  • 11 values from x10 to x20,000
Stimulating and Recording Headstage Limits
  • Max current is 20 mA, with a +/- 10 V voltage range.
